Drain Before You Build: Essential Drainage Advice for UK Home Renovators

Planning a new build or house extension is an exciting prospect — but get your drainage wrong and you could face costly problems down the line. Here’s what every UK homeowner needs to know before breaking ground.

Home
How to Hub
Drainage
Drain Before You Build: Essential Drainage Advice for UK Home Renovators

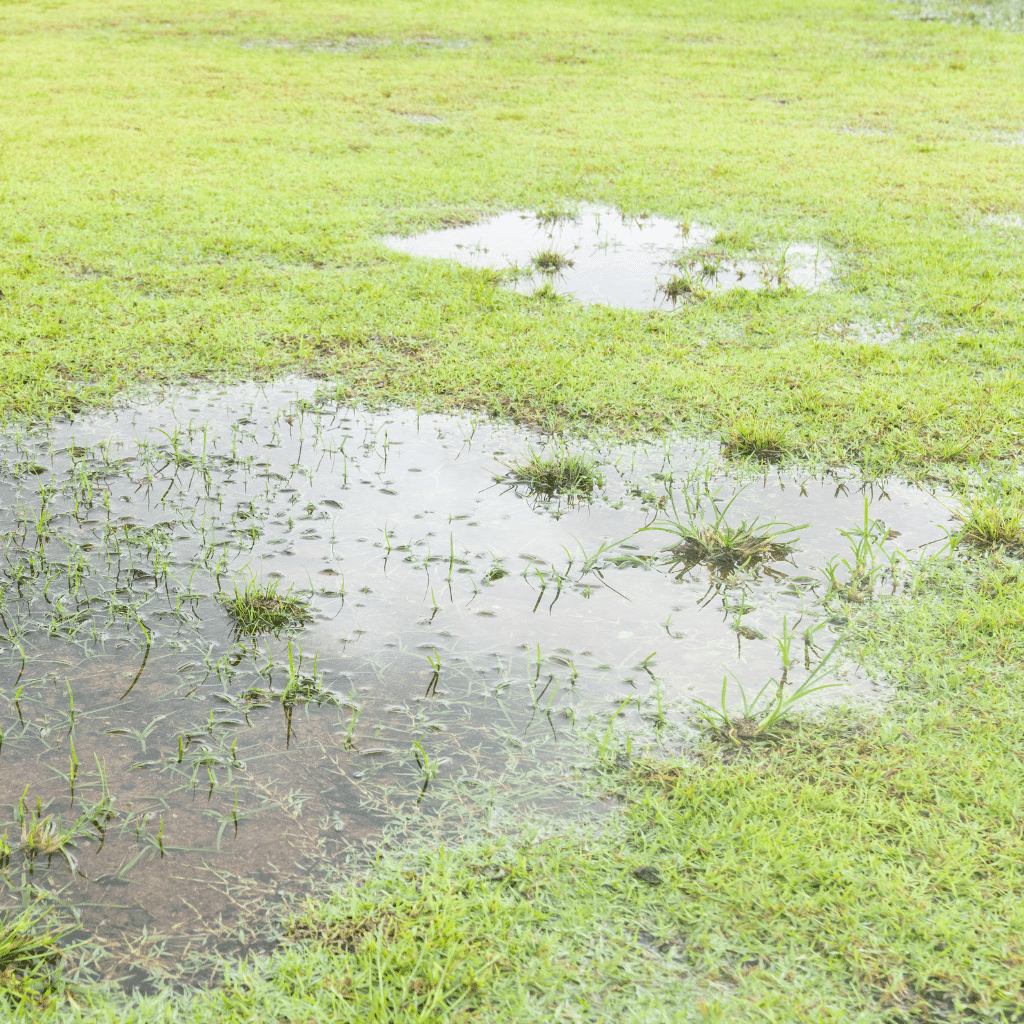

garden lawn flooded due to poor drainage

Drainage is rarely the most glamorous part of a renovation project, yet it’s arguably the most important. Poor planning at this stage leads to waterlogging, structural damage, and the kind of remedial work that eats through budgets fast. Whether you’re adding a rear extension, converting a garage, or building from the ground up, getting drainage right from the start will save you a great deal of trouble.

Know the Rules First

Before anything else, check your obligations. In England and Wales, the building regulations that govern drainage fall under Approved Document H. Any new drainage system connected to a public sewer requires approval, and in many cases you’ll need to notify your local authority or water company. If your project involves building over or near an existing public sewer, you’ll require a formal build-over agreement. Skipping this step can invalidate your planning permission and cause serious problems when you come to sell the property.

Black drains above ground, set again contemporary grey house cladding

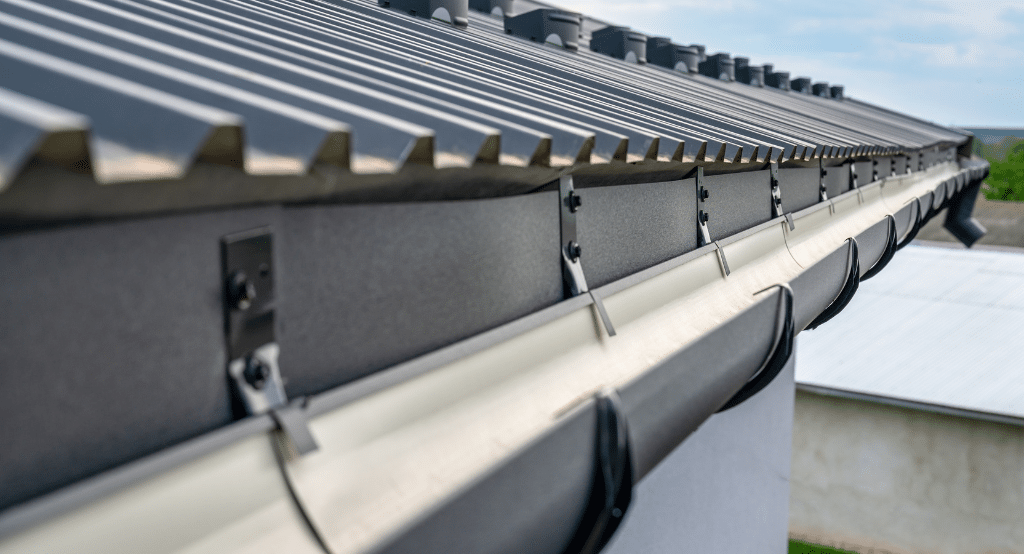

Above-Ground Drainage: Getting the Pipework Right

For above-ground drainage — guttering, downpipes, and rainwater pipes — the priority is directing water away from the structure efficiently.
Use UPVC or cast iron downpipes of at least 68mm diameter for standard residential use, ensuring they’re fixed securely to the wall with brackets no more than 1.8 metres apart.
Slope matters enormously. Horizontal rainwater pipes should fall at a minimum gradient of 1:60 to prevent standing water and blockages.
All joints must be watertight, and downpipes should discharge into a proper drainage point rather than simply onto a pathway or garden, which can cause erosion and damp issues at the foundations.

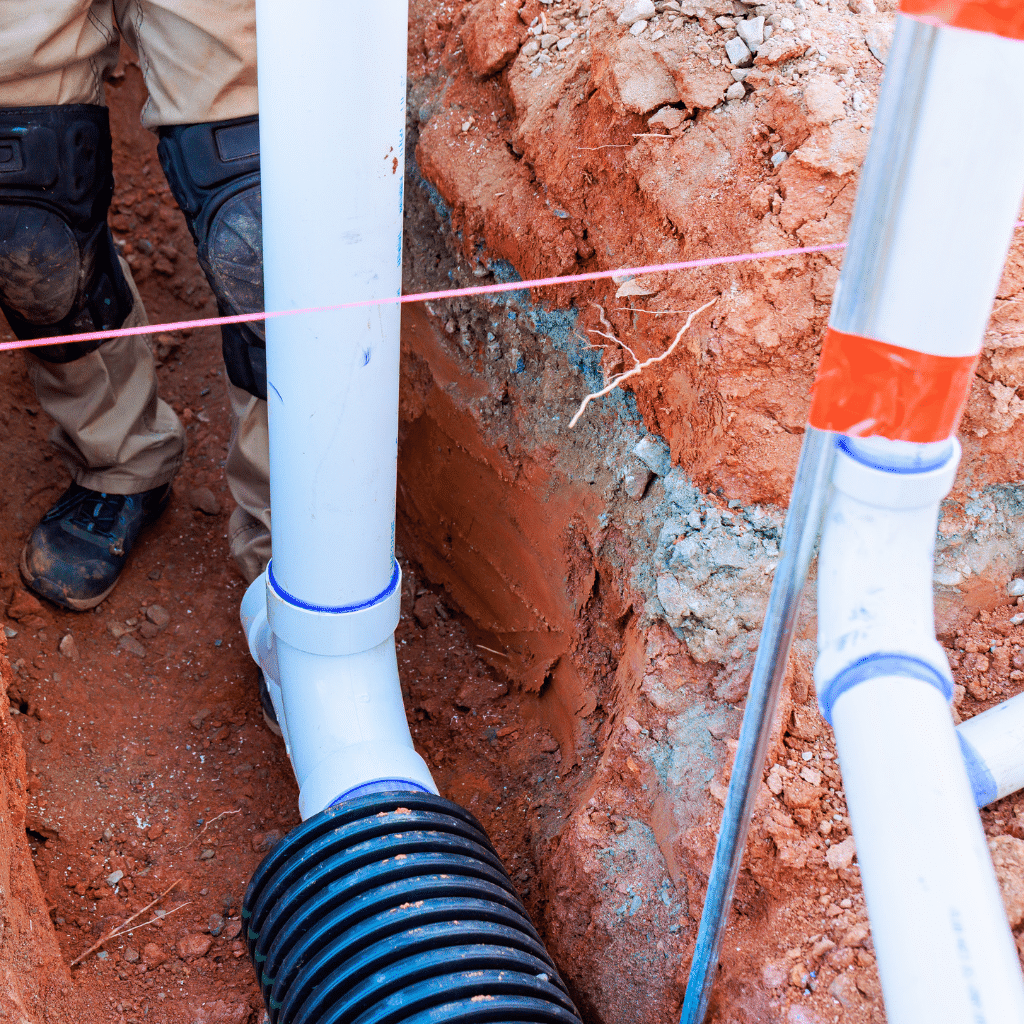

Man standing next to underground drain pipes installation, showing height line string

Below-Ground Drainage: Depth, Gradient, and Materials

Underground drains need careful planning. Pipes should be laid at a minimum depth of 600mm in gardens and 900mm under driveways or areas with vehicular traffic to protect them from damage.
A consistent fall of 1:80 for 100mm diameter pipes (the standard for household drains) ensures waste flows freely without the solids settling and causing blockages.
Rigid vitrified clay or UPVC pipes are the materials of choice in the UK. Surround pipes in pea gravel and inspect chambers (manholes) should be installed at every change of direction, junction, or where runs exceed 22 metres — these are essential for future access and maintenance.

Soakaways: Managing Surface Water Sustainably

Where connecting to a public sewer isn’t possible or permitted for surface water — increasingly common as water companies push for sustainable drainage systems (SuDS) — a soakaway is the solution.
A soakaway is an underground pit filled with rubble or a modern plastic crate system that allows rainwater to disperse gradually into the surrounding ground.
Under current UK guidance, soakaways should be positioned at least 5 metres from any building or boundary.
Before installing one, carry out a simple percolation test to confirm the ground has sufficient drainage capacity.
Soakaway crate systems are now widely preferred over traditional rubble-filled pits as they offer greater capacity in a smaller footprint and are less prone to collapse.

multiple drain pipes installed in ground prior to pouring foundations

Plan It Properly

Good drainage doesn’t happen by accident. Engage a qualified drainage engineer or building surveyor early in the design process, and make sure your drainage layout is included in any drawings submitted for building regulations approval. A little investment in planning at the outset is far cheaper than excavating a finished patio to fix a collapsed drain.
