Foundations First: What Every UK Renovator Must Know

Planning an extension, conversion, or new build? Getting your foundations right is absolutely critical—yet it’s one of the most misunderstood aspects of home renovation. Poor foundation choices can lead to structural failure, costly remedial work, and Building Control rejection.

Home
How to Hub
Home Renovation
Foundations First: What Every UK Renovator Must Know

This checklist walks you through everything you need to consider when planning your foundations and concrete work. Whether you’re tackling a single-storey extension or a more ambitious project, use this as your working guide to ensure you’ve covered all the essentials before breaking ground.

Foundation Types in the UK

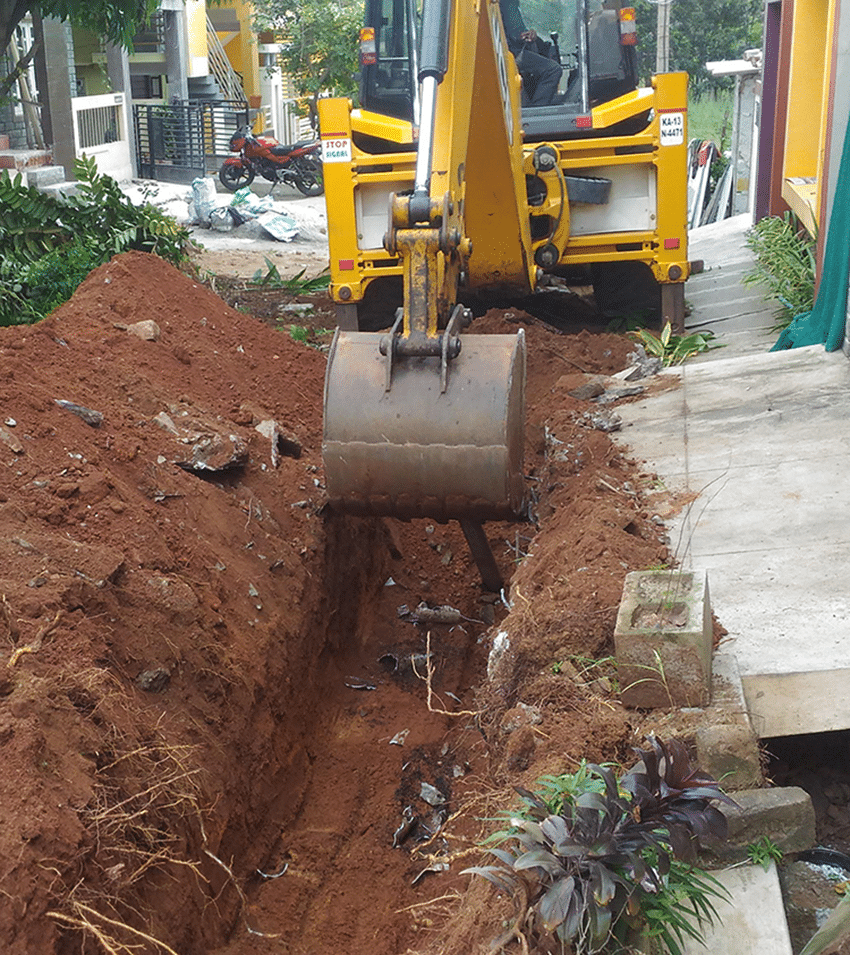

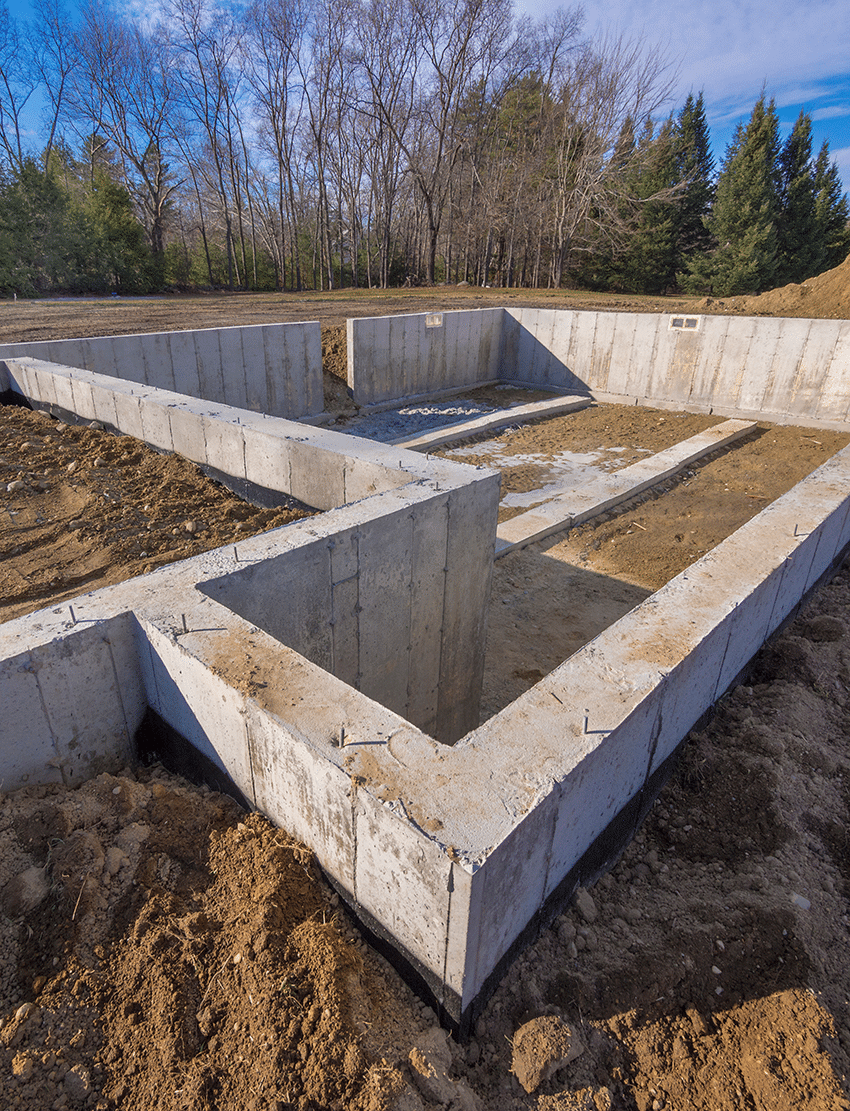

Strip Foundations

The most common for house extensions and new builds. These are continuous strips of concrete supporting load-bearing walls. Depth typically ranges from 450mm to 1000mm depending on soil conditions and Building Regulations requirements.

Trench Fill Foundations

A deeper, narrower variant of strip foundations filled almost to ground level with concrete. Popular because they require less brickwork below ground and are faster to construct. Usually around 1000mm deep.

Pad Foundations

Used for supporting individual columns or posts. Common in conservatories, porches, or steel-framed structures.

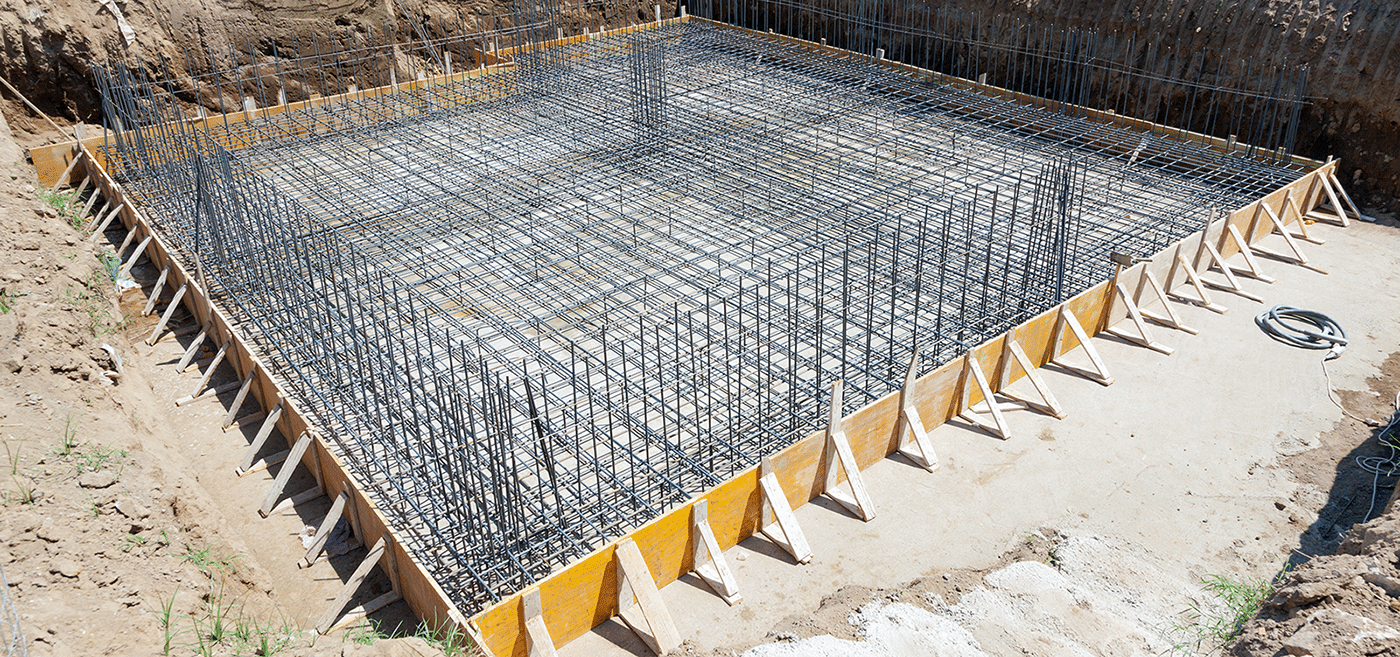

Raft Foundations

A concrete slab covering the entire building footprint. Used on poor ground conditions or where differential settlement is a concern. Less common in typical renovations.

Pile Foundations

Reserved for very poor ground conditions or heavily loaded structures. Rare in domestic work unless building on contaminated land or near trees.

Building Regulations Requirements

You must comply with Approved Document A (Structure) which covers foundation design.

Key considerations:

Minimum foundation depth is typically 900mm in clay soils to avoid frost heave and seasonal movement
Foundations must be on undisturbed ground or properly compacted fill
You’ll need Building Control approval – submit plans showing foundation type, depth, and width
May require soil investigation reports for larger projects or difficult sites

Concrete Specifications

Ready-Mix Concrete Grades:

C20/25 (previously ST2) – Standard for most domestic foundations and ground slabs
C25/30 (previously ST3) – For reinforced foundations or more demanding applications
C30/37 (previously ST4) – For structural elements requiring higher strength

Important Mix Considerations:

Specify sulphate-resisting cement if soil tests indicate aggressive ground conditions
Request appropriate workability for your application (typically S3 or S4 slump)
Factor in 10-15% wastage when ordering

Talk to Us About Your Concrete Needs

Tree-Related Issues?

Trees cause more foundation problems in the UK than anything else, particularly on clay soils:

High water demand trees (oak, poplar, willow) can cause subsidence by extracting moisture from clay
Building Regulations require deeper foundations near trees – typically 1m deep plus the mature tree height
Consider root barriers for new planting near existing structures
Get arboricultural advice for significant trees on or near your site

Practical Considerations

Working with Building Control:

Notify them before you start – they’ll want to inspect excavations before concrete is poured
Don’t backfill until inspected and approved
Keep records of concrete delivery tickets showing the mix specification

Ground Conditions:

Made ground (filled land) often requires specialist foundation design
Former industrial sites may need contamination assessments
High water tables may require tanking or drainage

Cost Factors:

Ready-mix concrete typically costs £95-130 per cubic meter (plus delivery)
Small loads attract premium charges
Consider grouping concrete pours to minimize delivery charges
Winter working may incur surcharges

Damp Proofing:

Foundations need proper DPC (damp proof course) at least 150mm above ground level
Consider using DPM (damp proof membrane) under ground floor slabs
Ensure cavity trays are properly installed at foundation level

Common Mistakes to Avoid

Not allowing for drainage around foundations – you need land drains in clay or wet conditions

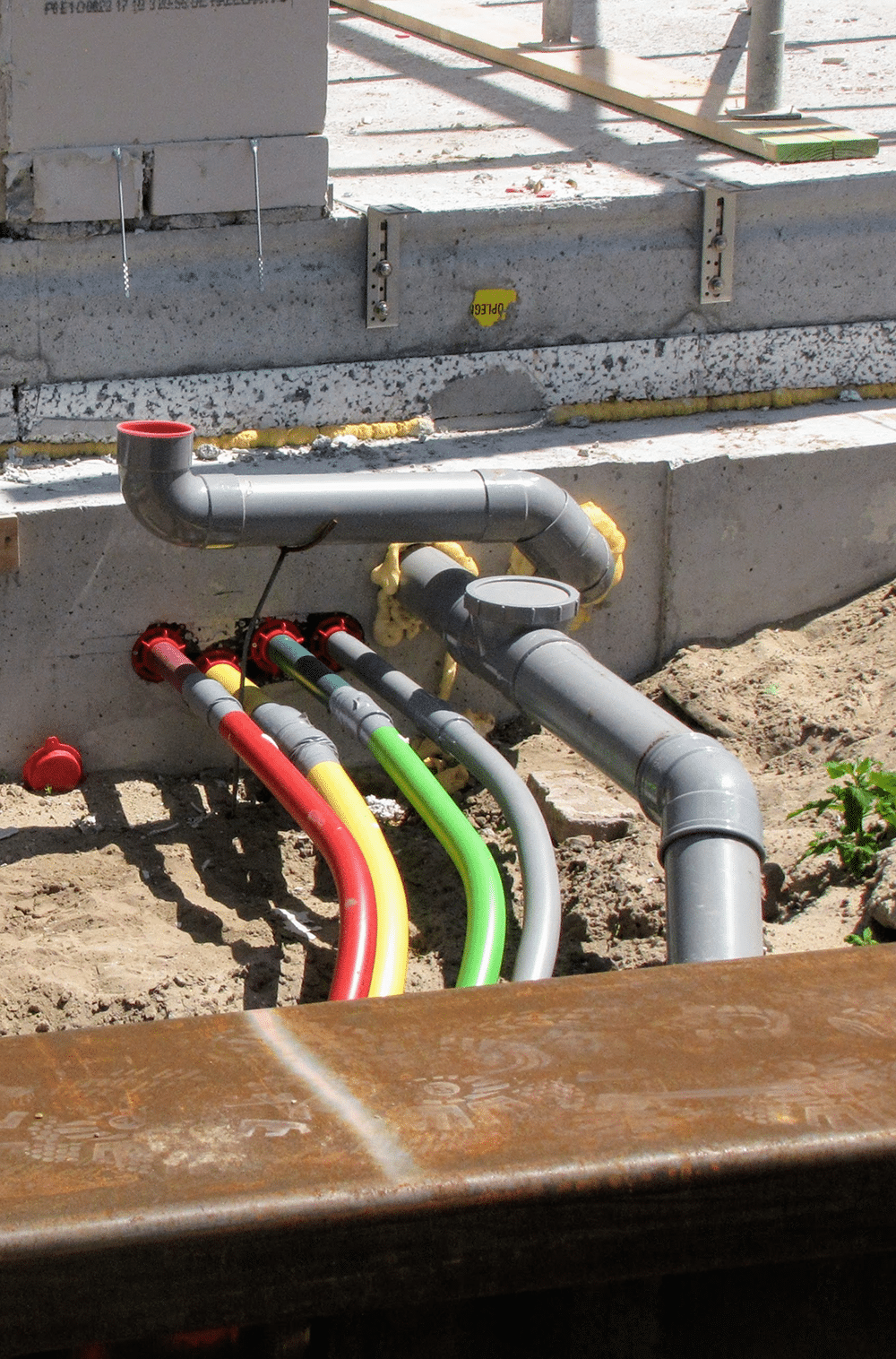

Inadequate provision for services passing through foundations
Poor compaction of backfill leading to settlement
Building too close to boundaries without considering neighbour’s foundations
Ignoring existing drains or not diverting them properly.

What Next? Seeking Professional Advice

For most projects, you’ll need input from:

Structural Engineers – Essential for foundation design, particularly for extensions, conversions, or difficult ground conditions. They’ll provide calculations and drawings for Building Control.
Building Control Officers – Your local authority’s Building Control team or an Approved Inspector can advise on regulatory requirements before you start and will inspect the work.
Geotechnical Specialists – For soil investigation and testing, especially important on clay soils, near trees, or on previously developed land.
Chartered Surveyors – Particularly useful if you’re dealing with subsidence issues, boundary disputes, or need a structural survey before purchasing a property for renovation.
Arboriculturists – When trees are present on or near the site, they can assess impact and recommend foundation depths or root management strategies.
Groundwork Contractors – Experienced local groundworkers often have invaluable knowledge of soil conditions in your area and can spot potential issues early.
Architects or Architectural Technologists – They’ll coordinate the overall design and ensure foundations integrate properly with the rest of your project.

Most domestic projects will primarily need a structural engineer and Building Control involvement, but the others become relevant depending on your specific site conditions and project scope.
